EDWARDS Vacuum Pump Handheld Remote Controller: Key Specs, Setup & Use Cases

2026-08-24

Quick Facts

Quick facts block for fast scan by field service & process engineers

Use case: Remote handheld operation, parameter configuration and real-time status monitoring for Edwards vacuum pump systems
Connection: Plug‑and‑play wired interface with dedicated mating connector
Operating voltage: DC24V / AC100‑240V wide‑range adaptive
Core jobs: Remote start-stop, pump parameter setup, real-time status readout, fault code display and alarm indication
Target users: Fab maintenance, lab R&D, vacuum system integrators, on-site service technicians

1. Product Overview

The EDWARDS Vacuum Pump Handheld Remote Controller is an original dedicated remote human-machine terminal compatible with Edwards vacuum pump platforms. It allows field technicians to operate, configure and diagnose the vacuum unit remotely without direct access to the pump main cabinet.

This handheld controller is built for factory floor and laboratory working conditions. It features an on-board LCD screen, physical navigation keys and dedicated status LED indicators for intuitive operation. EMC-compliant internal circuitry suppresses industrial electromagnetic interference, ensuring stable communication with process-critical vacuum equipment. It is widely deployed for semiconductor auxiliary vacuum systems, surface analysis instruments, industrial coating equipment and custom laboratory vacuum platforms. When matched with compatible Edwards vacuum pumps, it retains OEM-level control consistency and long-term operational reliability.

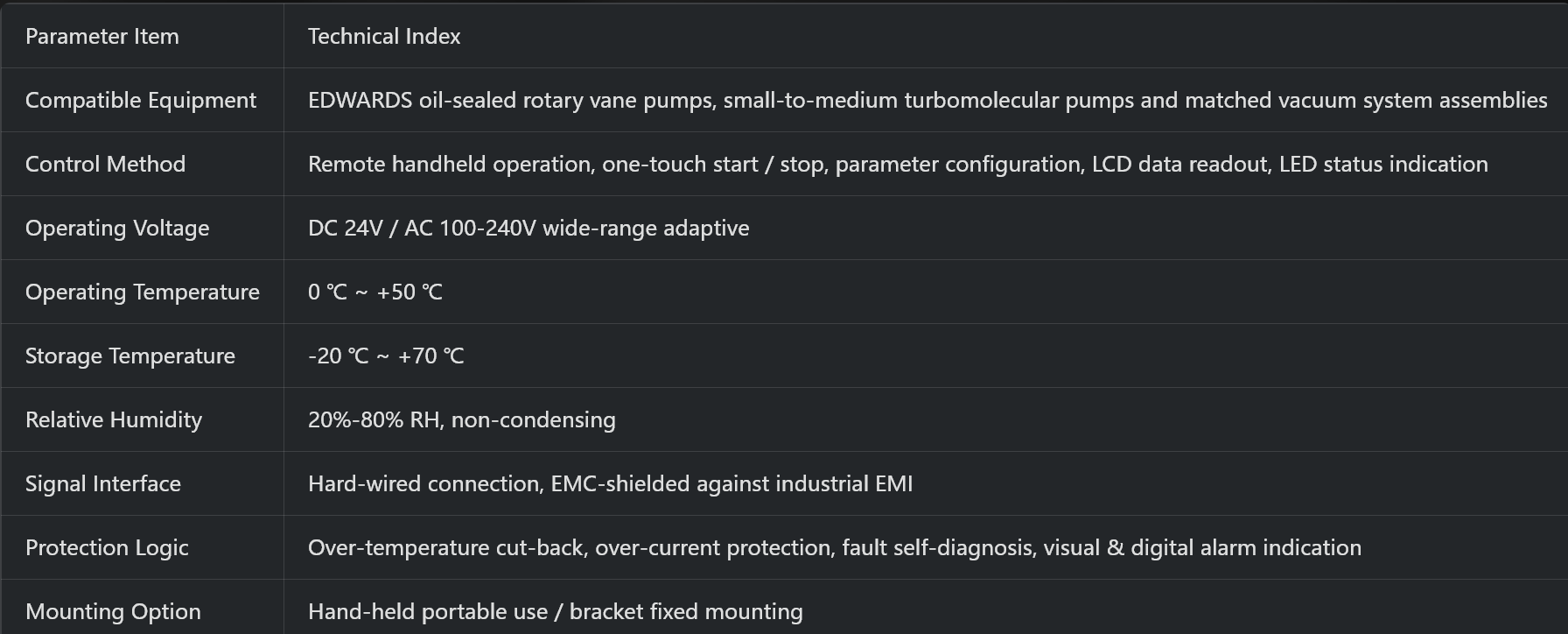

2. Core Technical Specifications

3. Key Features & Practical Benefits

3.1 Integrated LCD Display & Dedicated Status Indicators

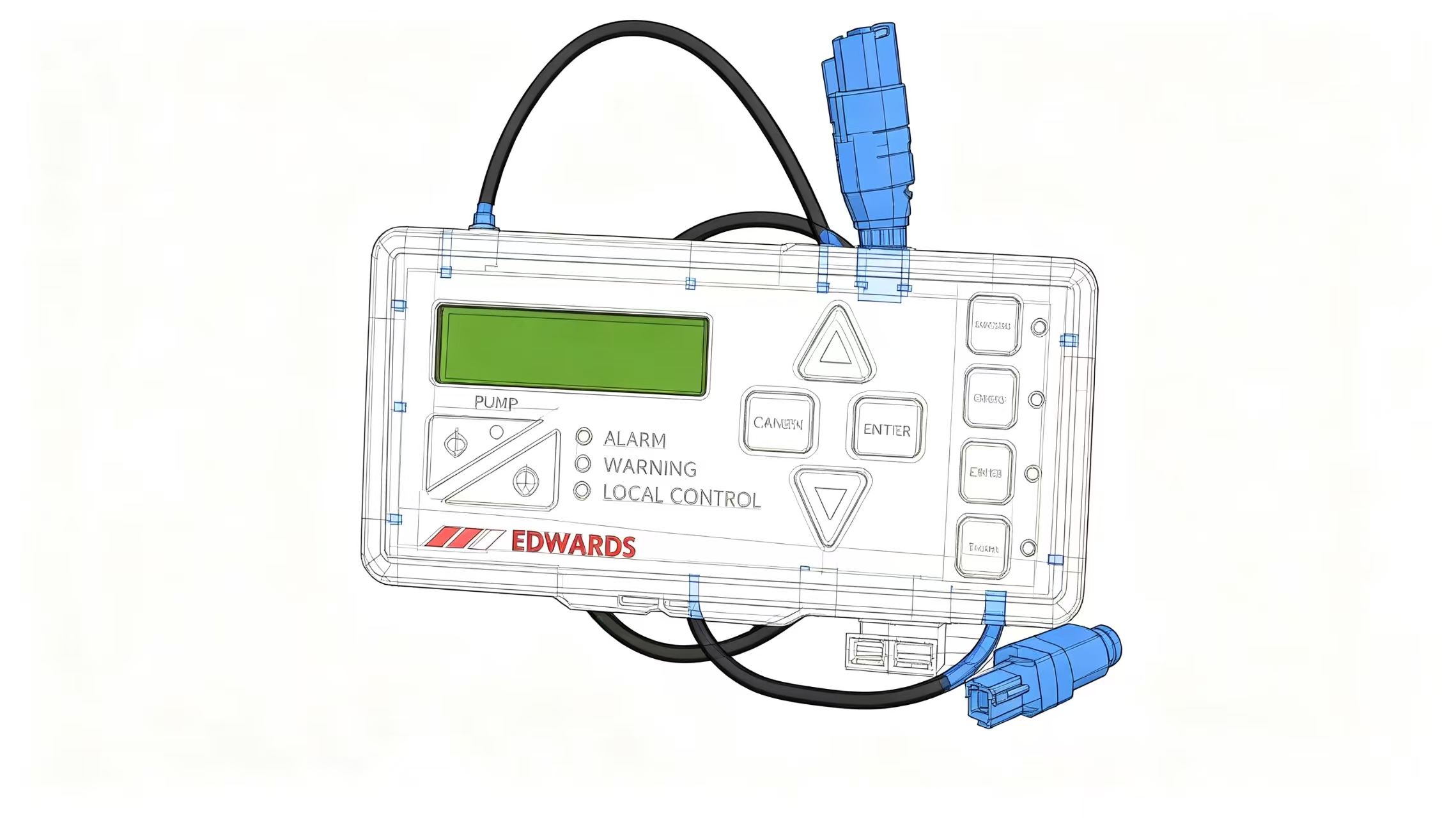

The unit is equipped with an onboard LCD screen, alongside dedicated LED markers for PUMP, ALARM, WARNING and LOCAL CONTROL status. Technicians can view running parameters and system alerts at a glance. The physical navigation keys including CANCEL, ENTER, up‑arrow and down‑arrow simplify menu navigation, parameter modification and fault code browsing. Operators do not need direct access to the pump main unit to retrieve operational data. Critical notifications such as pump running state, active alarms and warning triggers are clearly visible, speeding‑up on‑site diagnosis during equipment downtime.

3.2 Multi‑Level Hardware Protection

Integrated monitoring circuits track pump temperature, input current and operating pressure. When abnormal conditions are detected, the controller activates power‑limiting or standby mode rather than allowing uncontrolled run‑away operation. This helps prevent secondary pump damage and extends mean‑time‑between‑service (MTBS).

3.3 Remote Diagnostic Capability

Real‑time fault‑code output enables field‑service staff to identify root causes without laptop‑based diagnostic software. Alarm and warning LEDs deliver instant visual notification. Maintenance teams can assess equipment health quickly and arrange targeted repairs, reducing unplanned production interruptions.

3.4 Plug‑and‑Play Compatibility

Standardized mating connector fits multiple Edwards pump families. No custom programming or complex configuration work is required during swap‑out. Fast replacement minimizes tool downtime for aged‑equipment maintenance scenarios.

3.5 Robust EMC Performance for Process Environments

Shielded circuit design improves resistance to industrial electromagnetic noise. It is suitable for clean‑room semiconductor tools, surface‑analysis metrology and PVD/CVD coating systems, where control‑signal drift can cause process deviation.

4. Typical Application Environments

Semiconductor auxiliary vacuum subsystems: wafer etch, deposition and supporting process vacuum maintenance
Scientific‑lab precision vacuum hardware: mass spectrometers, XPS, AES surface‑analysis instruments
Industrial coating & processing: PVD / CVD vacuum coating, vacuum degassing, vacuum packaging lines
Custom mobile vacuum test benches and compact integrated vacuum systems

5. Installation & Field‑Service Guidelines

5.1 Pre‑Installation Check

Inspect handle body, cable and mating connector for physical damage, cracks or pin deformation.
Confirm input power matches rated specification. Mismatched voltage will cause permanent circuit damage.
Verify no moisture or conductive contamination inside the connector housing.

5.2 Installation Procedure

Power down the vacuum pump main unit before connecting the handheld remote controller.
Align connector key‑way and insert firmly until fully seated.

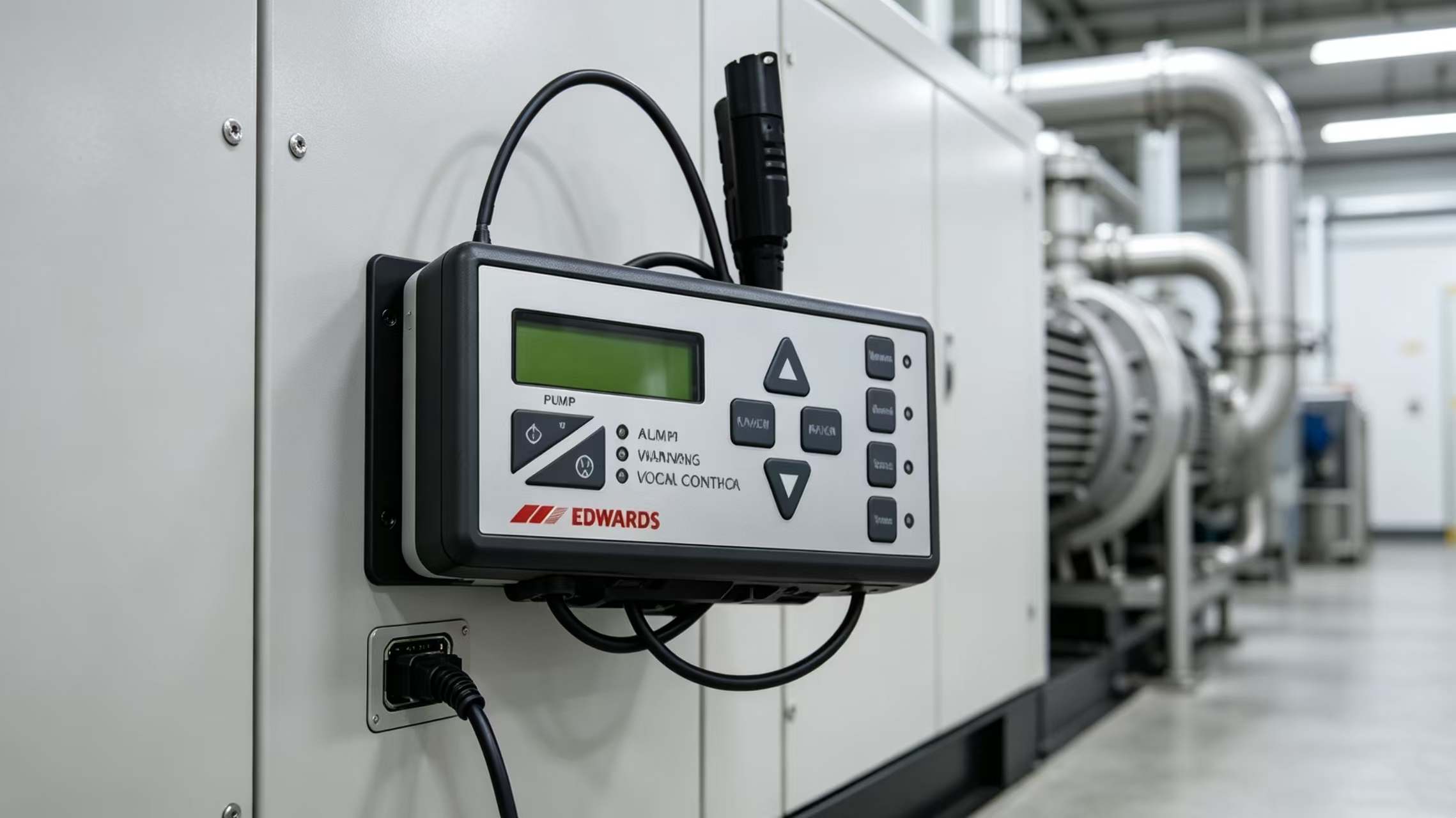

Choose handheld operation or secure with mounting bracket according to site requirements.
Restore power supply; observe LED self‑check sequence and confirm no active fault codes.

5.3 Routine Maintenance Notes

Keep controller housing and connector contacts free from dust and process residues.
Avoid sharp bending or harsh pulling of the signal cable.
Perform periodic function verification during planned equipment preventive‑maintenance cycles.
