Model No: 398021
Inficon VGC403 Three-Channel Vacuum Gauge Controller 398021
Condition: Used
minimum order :
1
Stock Time :
3~7Day
Quantity :
US $860.00
US $120.00
To
via
UPS
Estimated Delivery on
3-14

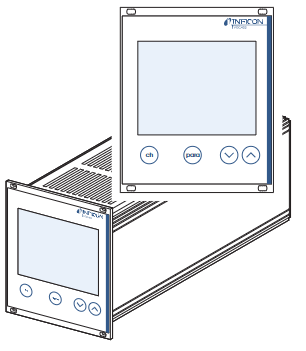

Inficon VGC403 Three-Channel Vacuum Gauge Controller 398021
The VGC403 is a versatile three-channel measurement and control unit designed for use with INFICON’s wide range of vacuum gauges. It provides precise total pressure measurement and control with six independent switching functions. Ideal for various vacuum applications, it offers flexible configuration, remote control via RS232C, and robust construction. The large, easy-to-read display shows pressure readings and status messages clearly, while the intuitive front panel buttons allow quick parameter adjustments.
Key Features:
- Three channels for simultaneous monitoring of up to three vacuum gauges
- Compatible with PSG, PCG, PEG, MPG, CDG, BPG, BCG, and HPG series gauges
- Six programmable switching functions (relays) for pressure-dependent control
- Large display with selectable pressure units (mbar, Pa, Torr, Micron)
- Analog outputs per channel (0–10 V) and a programmable recorder output (0–10 V)
- RS232C interface for remote operation and firmware updates
- Adjustable measurement filter, gas type correction, offset correction, and degas function
- Compact design for desktop, panel, or 19"rack mounting
- ETL listed and CE compliant
Technical Specifications:
Parameter | Details |
|---|---|
Channels | 3 |
Switching functions | 6 |
Power supply | 90–250 VAC, 50–60 Hz, max 65 W |
Sensor connections | RJ45 and D-Sub 15-pin (parallel) per channel |
Analog output | 0–10 VDC per channel |
Recorder output | 0–10 VDC, programmable |
Interface | RS232C |
Operating temperature | +5°C to +50°C |
Dimensions (WxHxD) | 106.3 x 128.5 x 207 mm |
Weight | 1.16 kg |
Applications:
- Vacuum coating
- Semiconductor processing
- Research laboratories
- Industrial vacuum systems requiring precise pressure monitoring and control
